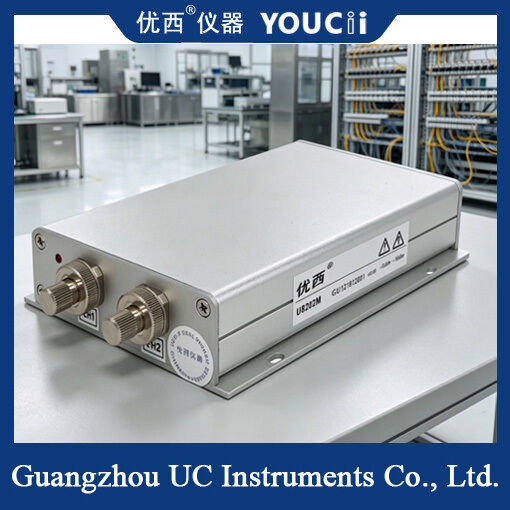

Dual-Channel Optical Power Meter Module, With Good Linearity

Description
Dimensions: 100 Mm W, 30 Mm H, 165 Mm D Application Fiber Type: Standard SM And MM Up To 62.5 Um Core Size
Recalibration Period: 2 Years Linearity (power): ≤ ± 0.06 DB (1200 Nm ~ 1610 Nm, +5~ -50dBm)
Wavelength Range: 850 ~ 1700 Nm Operation Temperature: 0 ~ +40℃
Uncertainty (accuracy) At Reference Condition: < 0.02 DB Typical Return Loss: > 40 DB

Product Description:

The Optical Power Meter is a highly precise and reliable instrument designed for measuring optical power in fiber optic networks. Weighing just 1.0 Kg, this device combines portability with robust functionality, making it an essential tool for technicians and engineers working in telecommunications, data centers, and fiber optic installations. Its compact design ensures ease of use in various field environments without compromising performance or accuracy.



One of the standout features of this Optical Power Meter is its exceptional linearity in power measurement. It boasts a linearity of ≤ ± 0.06 dB within the power range of 1200 nm to 1610 nm and a dynamic range of +5 to -50 dBm. This ensures that users receive consistent and accurate readings across a wide spectrum of wavelengths and power levels, which is critical for maintaining the integrity and efficiency of fiber optic systems. The device's sensitivity and precision make it suitable for both high-power and low-power signal measurements, providing versatility for multiple applications.



Accuracy is paramount in optical measurements, and this Optical Power Meter excels in this area with an uncertainty of less than 0.02 dB under reference conditions, typical for its class. This level of accuracy helps minimize error margins and enhances confidence in diagnostic and maintenance tasks. Whether calibrating equipment or troubleshooting network issues, users can trust that the readings provided are dependable and precise.



Features:

  • Product Name: Optical Power Meter
  • Storage Temperature: -30 ~ +80℃
  • Linearity (power): ≤ ± 0.06 dB (1200 nm ~ 1610 nm, +5 ~ -50 dBm)
  • Return Loss: > 40 dB ensuring high measurement accuracy
  • Power Sampling Period (Rate): 1 ms (1 KHz) for fast and precise readings
  • Communication Interface: RS232 for reliable data transfer
  • Wavelength Range: 1200 nm to 1610 nm suitable for various optical applications
  • Power Range: +5 dBm to -50 dBm covering a wide measurement spectrum

Model # U8201M U8202M U8201MH U8202MH
Number of Channels 1 2 1 2
Power Range +9 ~ -66dBm +25 ~ -50dBm
Wavelength Range 850 ~ 1700 nm

Power sampling period(rate)

1ms(1KHz)
Calibration Wavelength 850/980/1310/1490/1550/1610 nm
Application Fiber Type Standard SM and MM up to 62.5 um core size

Absolute

Uncertainty (accuracy) at reference condition

± 4% (1200 nm ~ 1610 nm, +5~ -50dBm) ± 4% (1200 nm ~ 1610 nm, +20~ -35dBm)

Relative

Uncertainty (accuracy) at reference condition

< 0.02 dB Typical
Linearity (power) ≤ ± 0.06 dB (1200 nm ~ 1610 nm, +5~ -50dBm) ≤ ± 0.06 dB (1200 nm ~ 1610 nm, +20~ -35dBm)
Return Loss > 40 dB
Communication Interface RS232
Sampling Data Storage Supports continuous data acquisition and storage for up to 2 hours online, with power curve plotting
Power Supply DC5V3A,Equipped with a 100~240V AC power adapter
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Recalibration Period 2 years
Dimensions 100 mm W, 30 mm H, 165 mm D
Weight 1.0 kg


Applications:

The YOUCii U8202M Dual-channel Optical Power Meter is a highly versatile and reliable instrument designed for a wide range of applications in the field of fiber optic testing and maintenance. Its dual-channel capability allows simultaneous measurement of two optical signals, making it ideal for complex network environments where efficiency and accuracy are paramount. With a calibrated wavelength range covering 850, 980, 1310, 1490, 1550, and 1610 nm, this device supports a broad spectrum of optical communication standards, ensuring compatibility with various types of fiber optic cables and systems.



Research laboratories and educational institutions benefit from the YOUCii U8202M’s precision and ease of use when conducting experiments and demonstrations involving fiber optic technology. Its dual-channel feature enables comparative studies and simultaneous measurements, enhancing experimental efficiency. Overall, the YOUCii U8202M dual-channel optical power meter is an essential tool for any professional working with fiber optics, providing accurate, reliable, and fast measurements of optical power and return loss across a wide wavelength range and power range.
