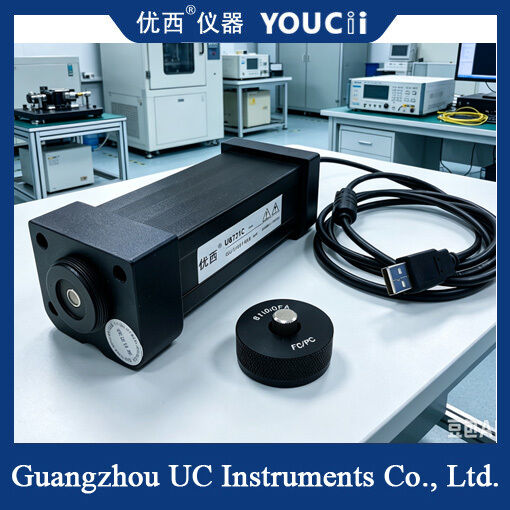

A Fast Optical Power Meter Probe With An Echo Loss Greater Than 40dB

Product Description:

The Optical Power Meter is a highly precise and reliable instrument designed for measuring optical power in fiber optic networks. Engineered to deliver exceptional accuracy and performance, this device is an essential tool for technicians and engineers working with fiber optic systems. With a typical uncertainty (accuracy) at the reference condition of less than 0.02 dB, the Optical Power Meter ensures highly accurate measurements, making it ideal for both standard single-mode (SM) and multi-mode (MM) fiber applications.

One of the standout features of this Optical Power Meter is its excellent return loss characteristic, which exceeds 40 dB. High return loss is crucial in fiber optic measurements as it indicates minimal signal reflection, leading to more reliable and precise readings. This superior return loss performance helps in maintaining the integrity of the optical signal and reduces measurement errors caused by back reflections within the fiber optic system.

Features:

• Product Name: Optical Power Meter
• Power Range (dBm): +5 to -80
• Calibration Wavelength: 850 / 980 / 1310 / 1510~1640nm Continuous Calibration
• Application Fiber Type: Standard Single Mode (SM) and Multi Mode (MM)
• Absolute Uncertainty (Accuracy) at Reference Condition: ±4% (1200 nm ~ 1610 nm, +0 ~ -65 dBm)
• Optical Input Interface: Supports Bare Fiber Joint or FC/LC/SC Adapter
• Wavelength Range: Covers 850 nm to 1640 nm for versatile testing
• High Return Loss performance ensures accurate power measurements

Technical Parameters:

Applications:

The power range of the YOUCii U8721C is broad, enabling technicians and engineers to measure both very weak and strong optical signals accurately. This makes it suitable for a variety of power measurement tasks in optical networks, including installation, commissioning, and routine maintenance of fiber optic cables and devices. The rapid power sampling period of 100 microseconds (10KHz rate) further enhances its utility in dynamic testing environments where quick response times are essential.

In addition to telecommunications, the U8721C is also widely applicable in research laboratories, manufacturing quality control, and educational settings where precise optical power measurements are necessary. Its robust design and advanced features enable professionals to evaluate return loss and power range performance with confidence, ensuring the integrity and efficiency of optical systems. Overall, the YOUCii U8721C Optical Power Meter is a versatile tool that supports a wide range of optical power measurement occasions and scenarios with unmatched accuracy and reliability.
