Product Description:
The Optical Power Meter is a highly precise and reliable instrument designed for measuring optical power in fiber optic networks. It supports a wide wavelength range of 850 nm to 1700 nm, making it versatile for various applications involving standard single-mode (SM) and multi-mode (MM) fibers. With continuous calibration at key wavelengths including 850 nm, 980 nm, 1310 nm, and 1510~1640 nm, this device ensures accurate and consistent measurements across a broad spectral range.
One of the standout features of this Optical Power Meter is its exceptional power range capability. It can detect very low power levels with high sensitivity, which is critical for assessing the performance of fiber optic links and components. The power sampling period is an impressive 100 microseconds (equivalent to a 10 kHz sampling rate), allowing for rapid and real-time power monitoring. This fast sampling rate is particularly beneficial for dynamic testing environments where quick response times are essential.
Features:
- Product Name: Optical Power Meter
- Application Fiber Type: Standard Single-Mode (SM) and Multi-Mode (MM)
- Power Range (dBm): +5 to -80 dBm, suitable for a wide power range measurement
- Wavelength Range: 850 to 1700 nm, covering key optical communication wavelengths
- Dimensions: 52mm (H) x 60mm (W) x 150mm (D), compact and portable design
- Optical Input Interface: Supports Bare Fiber Joint or FC/LC/SC adapters for versatile connectivity
- High return loss performance ensures accurate and reliable measurements
- Designed to minimize return loss for enhanced measurement precision
Technical Parameters:
| Power Range (dBm) |
+5 ~ -80 |
| Application Fiber Type |
Standard SM And MM |
| Power Sampling Period (Rate) |
100 Us (10KHz) |
| Uncertainty (Accuracy) at Reference Condition |
＜ 0.02 dB Typical Value |
| Weight |
0.5 kg |
| Return Loss |
＞ 40 dB |
| Calibration Wavelength |
850 / 980 / 1310 / 1510~1640 nm Continuous Calibration |
| Sensor Element |
InGaAs |
| Dimensions (H × W × D) |
52 mm × 60 mm × 150 mm |
| Wavelength Range |
850 ~ 1700 nm |
Applications:

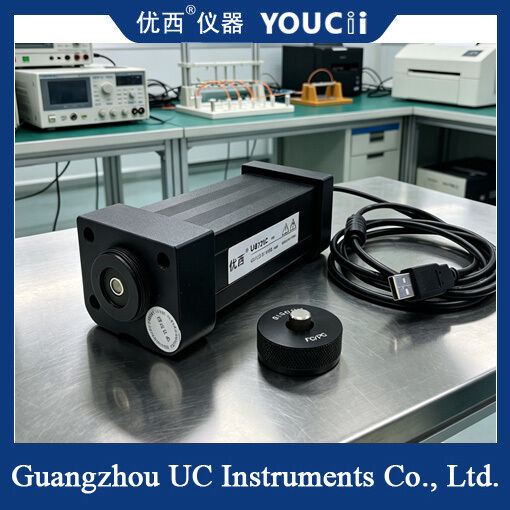

The YOUCii U8721C Optical Power Meter is a highly reliable and precise instrument designed for a variety of optical fiber testing applications. Originating from a fast optical power meter probe technology, this product offers exceptional accuracy with an absolute uncertainty of ±4% within the wavelength range of 1200 Nm to 1610 Nm and power levels from +0 to -65dBm. This makes it an ideal tool for technicians and engineers working with standard single-mode (SM) and multi-mode (MM) fibers, ensuring accurate measurement of optical power and return loss in diverse environments.
One of the primary application occasions for the YOUCii U8721C is in the installation, maintenance, and troubleshooting of fiber optic networks. Whether it’s a newly deployed fiber optic system or routine inspection of existing infrastructure, the device’s high precision, with a typical uncertainty value of less than 0.02 dB under reference conditions, guarantees reliable results. Its compact dimensions (52mm H, 60mm W, 150mm D) make it portable and easy to handle in the field, enabling quick and efficient testing in confined or hard-to-reach spaces.
The U8721C supports various optical input interfaces, including bare fiber joints and widely used FC, LC, and SC adapters, enhancing its versatility across different fiber optic setups. This flexibility allows users to test fibers with different connector types without the need for additional adapters, saving time and reducing errors. The power range capability of the meter ensures it can accurately measure low and high optical power levels, making it suitable for applications such as fiber optic link characterization, signal loss evaluation, and optical transmitter performance verification.
