Product Description:
The Optical Power Meter is a highly precise and reliable instrument designed for measuring optical power in fiber optic networks. Equipped with advanced technology, this device ensures accurate readings across a wide range of wavelengths, making it an essential tool for professionals working in telecommunications, data centers, and fiber optic installations. Its robust design and superior performance features make it suitable for both laboratory and field applications, providing users with confidence in their measurements and network assessments.
One of the standout features of this Optical Power Meter is its calibration wavelength range, which includes 850 nm, 980 nm, 1310 nm, and a continuous calibration spectrum from 1510 nm to 1640 nm. This broad wavelength coverage supports a variety of optical communication standards and applications, ensuring versatility and adaptability in different testing environments. The continuous calibration capability within the 1510 to 1640 nm range enables precise measurements without the need for frequent recalibration, thereby saving valuable time and enhancing operational efficiency.
Features:
- Product Name: Optical Power Meter
- Sensor Element: InGaAs
- Wavelength Range: 850 ~ 1700 Nm
- Application Fiber Type: Standard SM and MM fibers
- Lightweight design with a weight of 0.5kg for easy portability
- Calibration Wavelengths: 850 / 980 / 1310 / 1510~1640nm Continuous Calibration
- Wide Wavelength Range ensures accurate measurements across various fiber optic applications
- High return loss measurement capability for precise network analysis
Technical Parameters:
| Application Fiber Type |
Standard SM And MM |
| Power Range (dBm) |
+5 ~ -80 |
| Sensor Element |
InGaAs |
| Calibration Wavelength |
850 / 980 / 1310 / 1510~1640nm Continuous Calibration |
| Wavelength Range |
850 ~ 1700 nm |
| Dimensions |
52mm H, 60 mm W, 150 mm D |
| Optical Input Interface |
Supporting Bare Fiber Joint Or FC/LC/SC Adapter |
| Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical Value |
| Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm, +0 ~ -65 dBm) |
| Weight |
0.5 kg |
Applications:

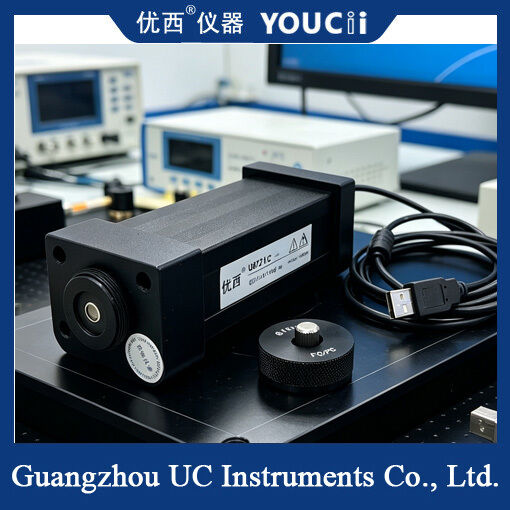

The YOUCii U8721C Optical Power Meter is a highly precise and reliable instrument designed for a wide range of application occasions and scenarios in the field of fiber optic communication and testing. Its advanced InGaAs sensor element ensures excellent sensitivity and accuracy across a broad Wavelength Range, making it ideal for measuring optical power in various optical networks and systems.
One of the primary application occasions for the YOUCii U8721C is in the installation and maintenance of fiber optic networks. Technicians and engineers use this optical power meter to accurately measure optical power levels, ensuring optimal performance and minimizing signal loss. The device supports multiple optical input interfaces, including Bare Fiber Joint and FC/LC/SC adapters, which makes it versatile and compatible with a wide variety of fiber optic connectors found in real-world scenarios.
In scenarios requiring precise loss measurements, such as return loss testing, the YOUCii U8721C excels due to its high absolute accuracy with an uncertainty of ±4% within the Wavelength Range of 1200 nm to 1610 nm and power levels ranging from +0 to -65 dBm. This accuracy is essential for evaluating the quality of fiber optic cables, connectors, and splices, helping to identify faults and optimize network performance.
