100us Power Sampling Cycle Optical Power Meter +5 To-80dBm

Product Description:

The Optical Power Meter is an essential tool designed for precise measurement and analysis of optical power in fiber optic networks. With its compact dimensions of 52mm in height, 60mm in width, and 150mm in depth, this device offers a portable yet robust solution for technicians and engineers working in the field or laboratory environments. Weighing only 0.5kg, it is lightweight and easy to carry, making it ideal for on-site testing and inspections without sacrificing performance or durability.

One of the standout features of this Optical Power Meter is its exceptional power sampling period, operating at a rapid rate of 100 microseconds (10kHz). This high-speed sampling capability ensures that users can capture real-time power fluctuations accurately, providing detailed and reliable measurements that are critical for maintaining optimal network performance. Whether you are monitoring a stable connection or troubleshooting intermittent issues, the swift response of this meter allows for quicker diagnostics and efficient resolution.

The device supports a broad wavelength range from 850 nm to 1700 nm, making it highly versatile for use with a wide variety of fiber optic systems. This extensive wavelength compatibility enables the meter to measure power levels across different types of fibers and communication standards, including both single-mode and multimode fibers. Such flexibility ensures that users can rely on this meter for diverse applications, from simple link verification to complex network maintenance.

Features:

• Product Name: Optical Power Meter
• Weight: 0.5kg
• Absolute Uncertainty (accuracy) at reference condition: ± 4% (1200 Nm ~ 1610 Nm, + 0 ~ -65dBm)
• Calibration wavelength: 850 / 980 / 1310 / 1510~1640nm Continuous Calibration
• Uncertainty (accuracy) at reference condition: ＜ 0.02 DB Typical Value
• Wavelength Range: 850 ~ 1700 Nm
• Wide power Range coverage ensuring precise measurements
• High accuracy across the entire power Range
• Reliable calibration maintaining consistent power Range performance

Technical Parameters:

Applications:

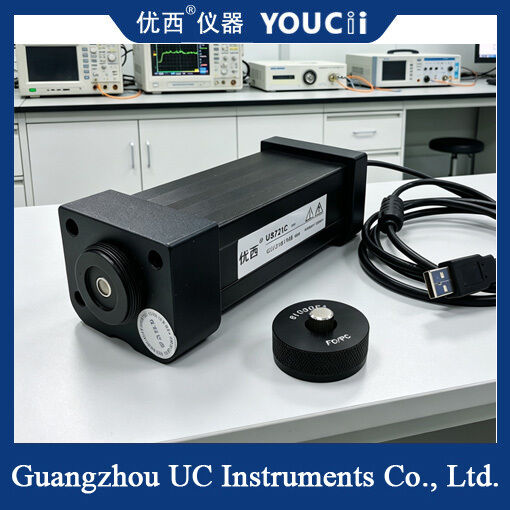

One of the primary application occasions for the YOUCii U8721C Optical Power Meter is in fiber optic installation and maintenance. Technicians use this device to verify the power levels of optical signals to ensure optimal network performance. The device supports a wide wavelength range, allowing it to accurately measure signals within the 1200 nm to 1610 nm spectrum. This versatility makes it suitable for various types of fiber optic cables and communication standards.

The U8721C also finds extensive use in telecommunications environments where maintaining signal integrity is critical. Its return loss greater than 40 dB helps in diagnosing and minimizing signal reflections that can degrade network quality. The absolute uncertainty of ±4% at reference conditions (+0 to -65 dBm within the 1200 nm to 1610 nm wavelength range) ensures high accuracy, providing reliable data for network troubleshooting and optimization.
