Product Description:
The Optical Power Meter is an advanced measurement instrument designed for precise and reliable optical power testing across a broad wavelength range. Equipped with a high-quality InGaAs sensor element, this device offers exceptional sensitivity and accuracy, making it ideal for a variety of fiber optic applications. The sensor element's wide dynamic power range from +5 dBm to -80 dBm ensures that the Optical Power Meter can measure both strong and weak optical signals with remarkable precision.
One of the key features of this Optical Power Meter is its extensive wavelength range support. It is calibrated to operate effectively across multiple wavelengths, including 850 nm, 980 nm, 1310 nm, and a continuous calibration range from 1510 nm to 1640 nm. This broad wavelength range coverage makes it suitable for testing a variety of fiber optic cables and components used in telecommunications, data transmission, and network maintenance. Continuous calibration within the 1510~1640 nm range guarantees consistent and accurate measurements over the entire specified spectrum, providing users with confidence in their testing results.
Flexibility in connectivity is another significant advantage of this Optical Power Meter. It supports various optical input interfaces, including bare fiber joints and popular adapter types such as FC, LC, and SC. This versatility allows technicians to easily connect the meter to different fiber optic cables and connectors without requiring additional adapters or tools, streamlining the testing process and improving efficiency in the field.
Features:
- Product Name: Optical Power Meter
- Wavelength Range: 850 / 980 / 1310 / 1510~1640nm with Continuous Calibration
- Power Range: Absolute Uncertainty (accuracy) of ± 4% at reference condition (1200 Nm ~ 1610 Nm, +0 ~ -65dBm)
- Return Loss: Greater than 40 dB
- Application Fiber Type: Compatible with Standard Single Mode (SM) and Multi Mode (MM) fibers
- Weight: 0.5 kg
Technical Parameters:
| Optical Input Interface |
Supporting Bare Fiber Joint Or FC/LC/SC Adapter |
| Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical Value |
| Application Fiber Type |
Standard SM And MM |
| Dimensions |
52mm H, 60mm W, 150mm D |
| Weight |
0.5 kg |
| Power Range (dBm) |
+5 ~ -80 |
| Sensor Element |
InGaAs |
| Power Sampling Period (Rate) |
100 μs (10 kHz) |
| Return Loss |
＞ 40 dB |
| Calibration Wavelength (Wavelength Range) |
850 / 980 / 1310 / 1510~1640 nm Continuous Calibration |
Applications:

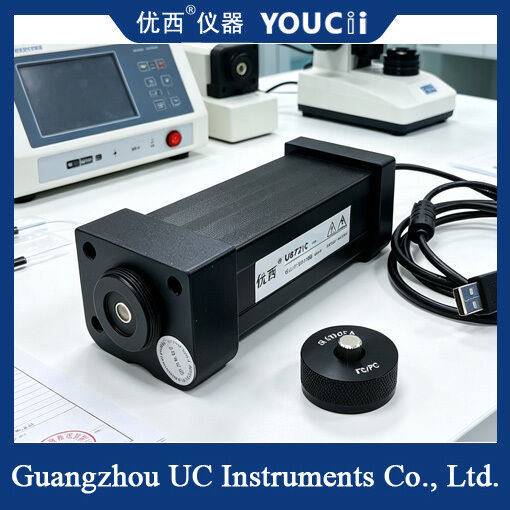

The YOUCii U8721C Optical Power Meter is a highly reliable and precise instrument designed for various applications in the field of fiber optics. Its compact dimensions of 52mm in height, 60mm in width, and 150mm in depth, combined with a lightweight design of just 0.5kg, make it an ideal choice for both laboratory and field use. The Fast optical power meter probe ensures quick and accurate measurements, which is essential for professionals working with fiber optic networks.
This optical power meter is particularly suitable for scenarios where high-speed and accurate power sampling is required. With a power sampling period of 100 microseconds (10KHz), it allows for rapid data acquisition, making it perfect for real-time monitoring and troubleshooting of optical signals. The InGaAs sensor element enhances sensitivity and accuracy across a wide wavelength range, ensuring compatibility with various types of optical fibers and systems.
