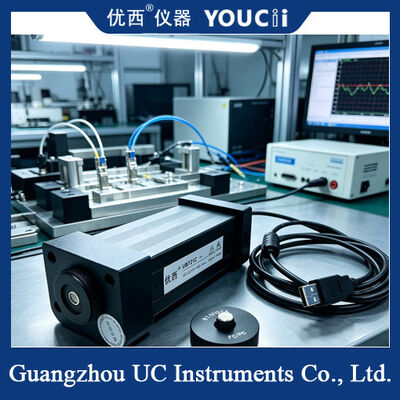

SM And MM Fiber Types, Wavelength Range 5 - 80dBm Optical Power Meter

Product Description:

The Optical Power Meter is a highly precise and reliable instrument designed for measuring optical power in various fiber optic applications. Weighing only 0.5kg, this compact and lightweight device offers exceptional portability without compromising on performance, making it an ideal choice for field technicians and laboratory professionals alike.

One of the key features of this Optical Power Meter is its impressive wavelength range, which covers multiple calibration wavelengths including 850 nm, 980 nm, 1310 nm, and a continuous calibration span from 1510 nm to 1640 nm. This extensive wavelength range ensures compatibility with a wide variety of optical systems, allowing users to perform accurate measurements across different fiber optic networks and components.

Features:

• Product Name: Optical Power Meter
• Power Range: +5 dBm to -80 dBm
• Wavelength Range: 850 nm to 1700 nm
• Absolute Uncertainty (accuracy) at reference condition: ±4% (1200 nm ~ 1610 nm, +0 ~ -65 dBm)
• Uncertainty (accuracy) at reference condition: < 0.02 dB Typical Value
• Compact Dimensions: 52mm (H) x 60mm (W) x 150mm (D)
• High sensitivity for accurate return loss measurement

Technical Parameters:

Applications:

The YOUCii U8721C Optical Power Meter is an advanced and reliable tool designed for precise optical power measurements in various occasions and scenarios. Originating from a fast optical power meter probe technology, this device is equipped with a high-performance InGaAs sensor element, ensuring exceptional sensitivity and accuracy. Its power range accommodates a wide spectrum of optical power levels, making it ideal for diverse applications from laboratory testing to field maintenance.

One of the critical features of the YOUCii U8721C is its excellent return loss performance, with values exceeding 40 dB. This high return loss ensures minimal signal reflection during measurements, which is crucial for obtaining accurate and consistent readings in fiber optic networks. Such a characteristic makes the U8721C particularly suitable for use in environments where signal integrity is paramount, such as in telecommunications, data centers, and high-speed internet infrastructure installations.
